RF Antennas for OEM Integration & Detector Accessories
Compare directional and omnidirectional antenna families for RF equipment integration. Review the frequency band, polarization and interface, or request the two antenna accessories compatible with P29 and P29L handheld detectors.
RF Antenna Families
These are separate product families with different bands and mechanical arrangements. The listed specifications describe the configurations below; they do not represent a universal antenna covering every frequency.
Configuration-dependent product images. Confirm the supplied connector, dimensions and mounting arrangement for your order.
Directional PCB Antenna
A compact format for built-in RF assemblies requiring directional coverage.
- Band
- 950–1100 MHz
- Gain
- 5 ± 1 dBi
- Polarization
- Vertical
- Connector
- SMA-J with 15 cm RG086 cable

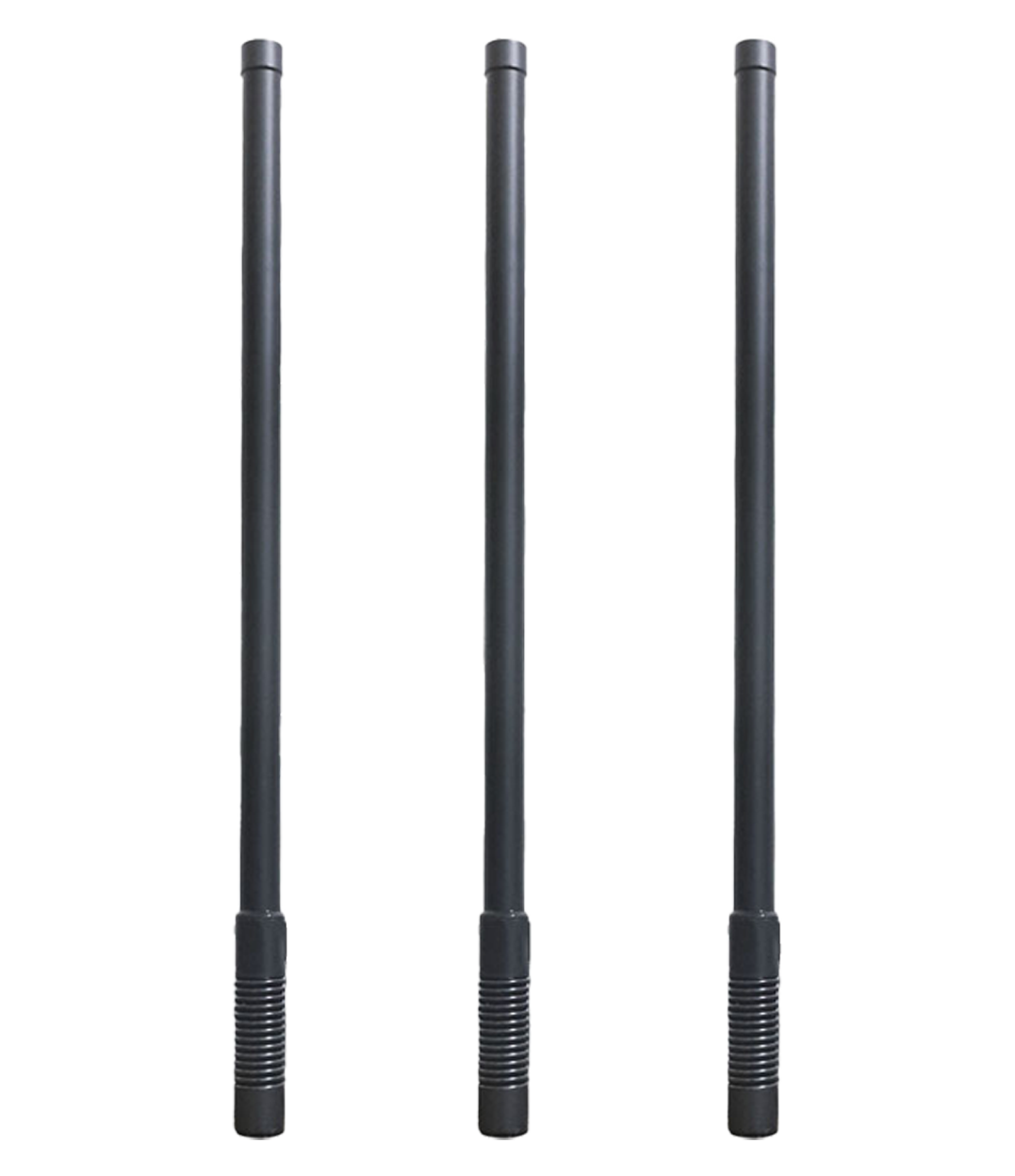

Fiberglass Antenna
A vertical antenna with an omnidirectional horizontal pattern and fiberglass housing.
- Band
- 960–1070 MHz
- Gain
- 2 ± 1 dBi
- Polarization
- Vertical
- Connector
- N-J, embedded

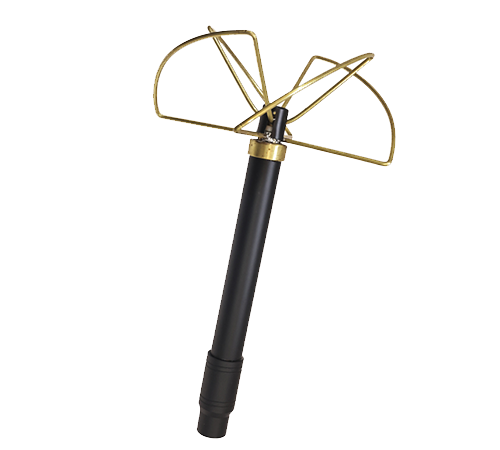

Clover Antenna
A circularly polarized configuration with an omnidirectional horizontal pattern.
- Band
- 1160–1280 MHz
- Gain
- 2 ± 1 dBi
- Polarization
- Circular; handedness to confirm
- Connector
- N-J, embedded

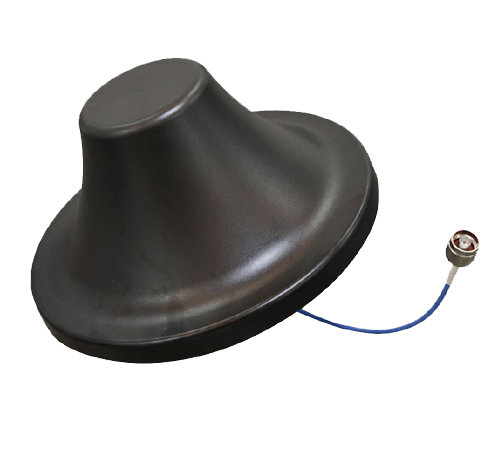

Ceiling Antenna
A ceiling-mount format. Use the published beamwidth when assessing coverage.
- Band
- 1070–1370 MHz
- Gain
- 2 ± 1 dBi
- Polarization
- Vertical
- Connector
- N-type; mating details to confirm

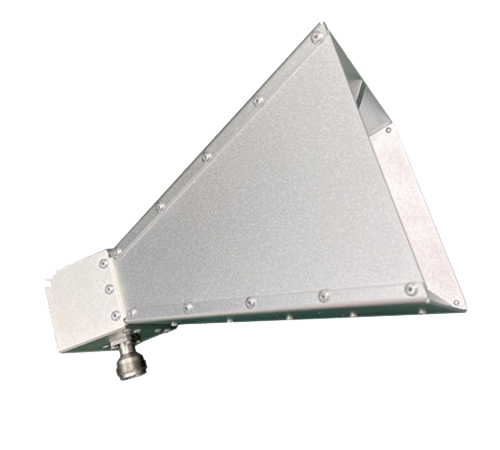

Horn Antenna
A larger directional format supporting vertical or horizontal polarization.
- Band
- 300–2600 MHz
- Gain
- 5–17 dBi across the stated band
- Polarization
- Vertical / horizontal
- Connector
- Confirm with your enquiry
Compare Antenna Specifications
Use this comparison to shortlist a family before confirming the exact supply configuration.
On smaller screens, swipe or scroll the table horizontally to see every specification.
| Family | Frequency | Gain | Polarization | Beamwidth | Connector | Size |
|---|---|---|---|---|---|---|
| Directional PCB | 950–1100 MHz | 5 ± 1 dBi | Vertical | H: 65 ± 3° V: 65 ± 3° | SMA-J RG086, 15 cm | 300 × 90 × 1.5 mm |
| Fiberglass | 960–1070 MHz | 2 ± 1 dBi | Vertical | H: 360° V: 55 ± 10° | N-J, embedded | Ø20 / 25 / 32 × 450 mm Confirm diameter |
| Clover | 1160–1280 MHz | 2 ± 1 dBi | Circular Confirm handedness | H: 360° V: 90 ± 15° | N-J, embedded | Request mechanical dimensions |
| Ceiling | 1070–1370 MHz | 2 ± 1 dBi | Vertical | H: 110 ± 10° V: 85 ± 10° | N-type Confirm mating details | Ø275 × 122 mm |
| Horn | 300–2600 MHz | 5–17 dBi Frequency-dependent | Vertical / horizontal | Request pattern for your band | Confirm before ordering | 680 × 490 × 595 mm |
H = horizontal; V = vertical. Horn gain varies with frequency. Connector descriptions retain the published designations; confirm mating details before ordering. All five listed families specify 50 Ω impedance.
Antenna Accessories for P29 and P29L
These two accessories are compatible with P29 and P29L. They are separate from the five RF families above. Confirm the connector, accessory quantity and included items when requesting a detector or replacement antenna.
Dual-band Short Antenna
2.4 / 5.8 GHz · 4 dBi
A short antenna accessory for the two stated bands.
Wideband Long Antenna
100 MHz–6 GHz · typical 5 dBi
The typical gain is not a constant gain guarantee at every frequency.
Other Clover Frequency Requirements
For 400–500 MHz, 500–700 MHz or 5725–5850 MHz requirements, request a configuration check. Confirm gain, polarization, connector and dimensions for the requested band; the 1160–1280 MHz specifications above do not automatically apply.
What to Include in Your Enquiry
A few integration details help us identify the relevant antenna configuration and specifications.
For satellite reception and receiver integration, compare ANTGN-MF, ANTGN-CM and ANTGN-SF GNSS antennas.
For active RF components, compare our RF power amplifier modules by model and published specification.
Buying several components for your own equipment? Browse the OEM directory and build a procurement inquiry.
- Frequency and polarization: required band, linear or circular polarization, and circular handedness if specified.
- Interface and installation: connector, cable requirements, mounting space and preferred antenna format.
- Equipment and quantity: target device or OEM assembly, required quantity, and whether you need antennas separately or alongside a detector.
RF Antenna Questions
Are all five RF families compatible with P29 or P29L?
The compatibility statement applies to the short dual-band and long wideband accessories in the dedicated section. The five general RF families require an equipment and connector check.
Does the highest gain provide the best choice?
Gain alone does not determine suitability. Compare the required band, polarization, coverage pattern, connector and mechanical fit. The horn's 5–17 dBi specification is a range across frequency.
Are antennas included when I order a detector?
Confirm the included accessory list for your detector quotation. This page also supports separate antenna enquiries and does not define a standard detector bundle.
Request a Configuration Check or Quotation
On Contact, select OEM Modules & Boards. Include the antenna family or accessory, frequency band, polarization, connector, quantity and target equipment. We can review the relevant configuration and specification details with your enquiry.
