RF Sweep Source Modules
SF-2.4G/5.8G-WB200M is an enclosed RF sweep source module for laboratory evaluation and OEM RF test hardware. Review its 2.4 GHz / 5.8 GHz frequency labels, RF interface and reference power requirements, then define the sweep and output specifications your equipment requires.
RF Sweep Source Hardware
SF-2.4G/5.8G-WB200M

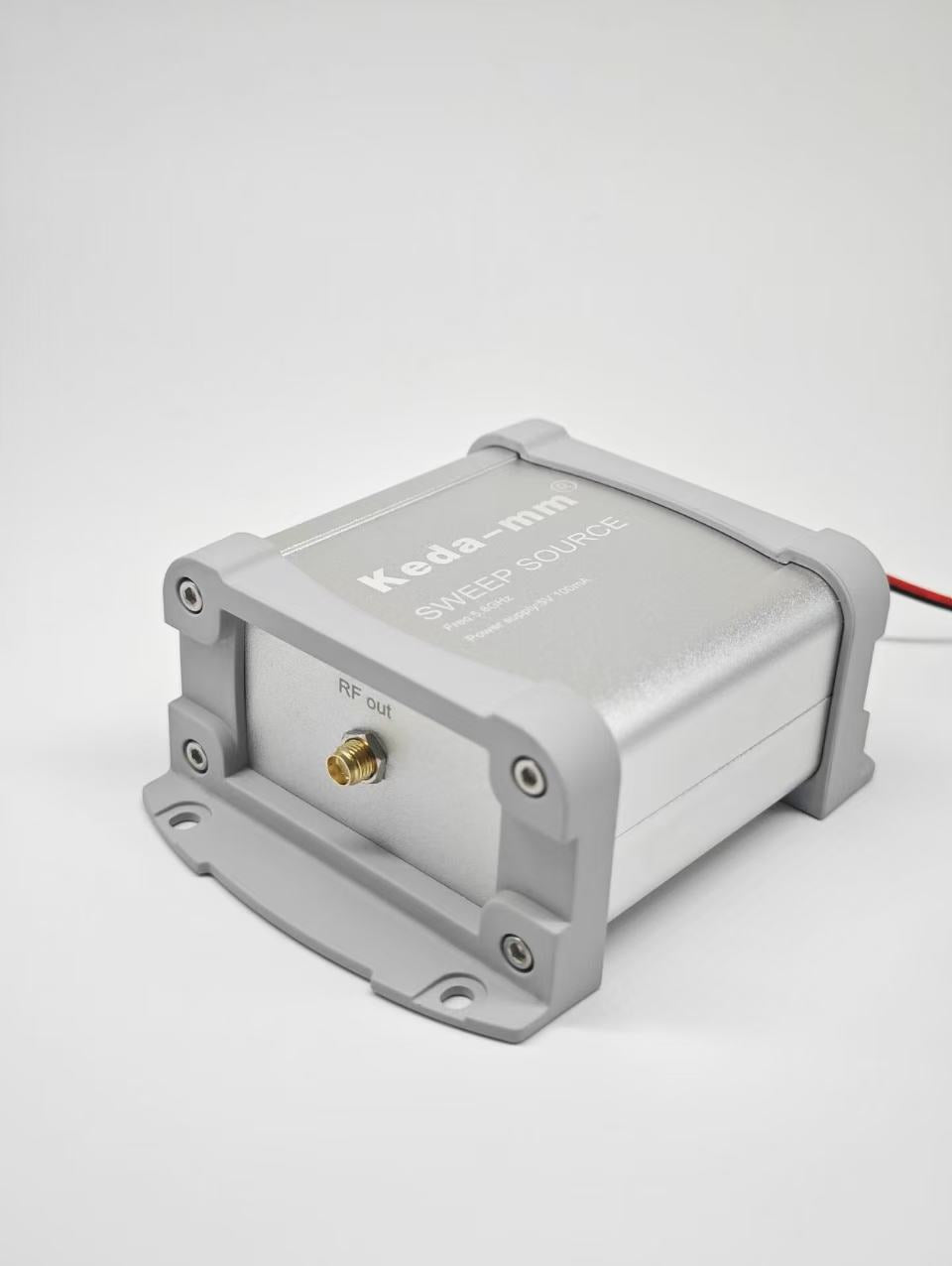

An enclosed module with an RF output connector and external power leads. The product view shows a 5.8 GHz configuration; specify the required frequency configuration for your order.
SF-2.4G/5.8G-WB200M
5.8 GHz configuration example. Confirm the frequency and mechanical configuration for your order.Laboratory & OEM Hardware
Define the sweep behavior your test requires.
For model selection, specify the required frequency configuration, sweep coverage and RF output acceptance limits alongside the power and control requirements of your test hardware.
2.4 GHz / 5.8 GHz labels50 ΩSMA Female reference
Request the sweep characteristics, interface documentation and mechanical drawing for the configuration you plan to order.
On smaller screens, scroll horizontally to read the specification conditions.
| Specification | Value or reference | Selection notes |
|---|---|---|
| Frequency labels | 2.4 GHz / 5.8 GHz | Identify the required frequency configuration; specify the sweep coverage needed for your test. |
| RF impedance | 50 Ω | RF interface reference for evaluating your equipment requirements. |
| Reference supply voltage | 5 V | Match the power requirement to the ordered configuration. |
| Reference supply current | 100 mA typical | Typical reference value; assess under the intended operating conditions. |
| RF connector reference | SMA Female | Include the required connector and mechanical configuration with your order. |
| Reference housing & weight | 83 × 60 × 40 mm 168 g | Housing and weight reference only. Use the current mechanical drawing for mounting and connector clearance. |
Sweep coverage, RF output limits and control/interface requirements are reviewed for the ordered configuration. Typical current and housing figures are selection references; request the current mechanical drawing when defining installation requirements.
Selection Requirements
Match the module to your RF evaluation requirements.
Include the RF acceptance criteria, hardware requirements and order details that determine the configuration for your laboratory or OEM equipment.
Sweep and output acceptance
State the required frequency configuration, sweep coverage and timing requirements. Define the RF output-level acceptance limits and measurement conditions needed for your evaluation.
Control, power and mechanics
Identify the control/interface documentation you need, available power supply, RF connector and installation space. Request the current mechanical drawing for the proposed configuration.
Evaluation and order details
Include SF-2.4G/5.8G-WB200M, quantity, destination and timeline. List the required hardware and included items. Sample availability, configuration and lead time are confirmed with the quotation.
Selection FAQ
Questions before specifying the sweep source module.
What is SF-2.4G/5.8G-WB200M used for?
This RF sweep source module can be evaluated for laboratory and OEM RF test hardware. Selection starts with the required frequency configuration, sweep behavior, RF output limits, power and control requirements.
Which frequency configuration does the product image show?
The image shows a 5.8 GHz configuration. The model designation includes 2.4 GHz / 5.8 GHz frequency labels. Identify the configuration and output arrangement required for your order, together with the applicable sweep specifications.
Which sweep and RF output specifications should I request?
Request the sweep frequency endpoints, coverage and timing, RF output-level limits and applicable control/interface documentation for the selected configuration. Use those specifications for acceptance; the model suffix alone does not define the sweep span.
What should I include in an OEM inquiry?
Include SF-2.4G/5.8G-WB200M, the required frequency configuration, sweep and RF output acceptance criteria, control requirements, power supply, connector and mechanical constraints, quantity, destination and timeline. Request the applicable documentation and a list of included items.
OEM Module Procurement
Request sweep source specifications or a quotation.
On Contact, select OEM Modules & Boards. Include SF-2.4G/5.8G-WB200M and your RF, sweep, control, power and mechanical requirements, together with quantity, destination and timeline, so we can review the appropriate configuration.
