UWB-LNOF is an enclosed RF frequency source module for laboratory research and OEM test equipment. Review its 40 MHz–22 GHz frequency range, RF output and power requirements, then define the control and mechanical configuration for your application.
RF Frequency Generation
UWB-LNOF RF Frequency Source Module

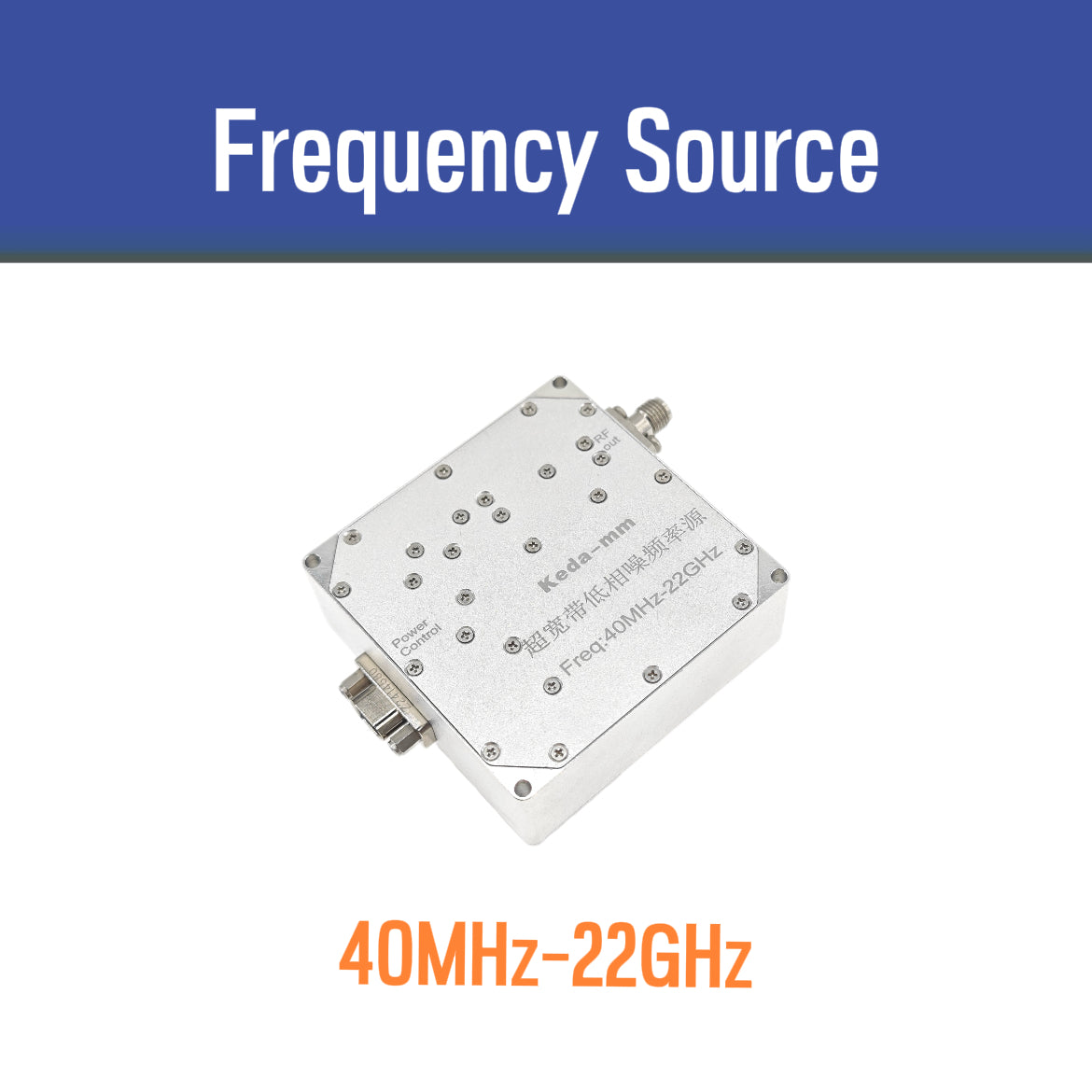

A hardware frequency source for evaluating RF equipment and specifying OEM test hardware. The enclosed module has an RF output connector and a separate power/control connector.
UWB-LNOF
Enclosed RF frequency source module for laboratory and OEM test equipment. Confirm the control interface and mechanical configuration when ordering.Laboratory & OEM Hardware
Define the frequency source your equipment requires.
Evaluate the operating band, required RF output level and phase-noise conditions alongside your control and mechanical requirements. Specify the frequency-step resolution needed for your test.
40 MHz–22 GHz≥10 dBm RF output50 Ω
Request the specification and control documentation for the configuration you plan to order.
On smaller screens, scroll horizontally to read the specification conditions.
| Specification | Value or configuration | Selection notes |
|---|---|---|
| Frequency range | 40 MHz–22 GHz | Specify the working frequencies required for your test equipment. |
| RF output power | ≥10 dBm | Confirm the required RF level and applicable measurement conditions. |
| RF impedance | 50 Ω | Review the impedance requirements of your RF equipment. |
| Reference power supply | 5 V DC / 1 A | Reference supply requirement; confirm the power specification for the ordered configuration. |
| Phase-noise reference point | −106 dBc/Hz | At 1 kHz offset from a 5 GHz carrier. Confirm performance requirements at other frequencies and offsets. |
| RF connector reference | 2.92 FEMALE | Configuration reference; confirm the connector and mechanical requirements for your order. |
| Power/control connector reference | J30J | Configuration reference; request the applicable connector and control documentation. |
| Control interface | Confirm for the ordered configuration | Confirm interface and control documentation for the ordered configuration. |
The phase-noise value applies to the stated carrier and offset. The 1 A entry describes the reference supply requirement. Confirm the control interface, frequency-step resolution and mechanical configuration when specifying the module.
Selection Requirements
Match the module to your test requirements.
Include the RF, control and mechanical requirements that determine the configuration for your laboratory or OEM equipment.
Frequency, level and resolution
State your working frequencies, required RF output level, frequency-step resolution and phase-noise acceptance conditions. Include the carrier frequency and measurement offset for any phase-noise requirement.
Control, power and mechanics
Define the control interface and documentation you need, available power supply, RF connector and mechanical space. Request the applicable control guide and mechanical drawing for the ordered configuration.
Evaluation and order details
Include UWB-LNOF, quantity, destination and timeline. Specify the hardware and accessories you require. Sample availability, included items and lead time are confirmed with the quotation.
Selection FAQ
Questions before specifying UWB-LNOF.
What is UWB-LNOF used for?
UWB-LNOF provides hardware RF frequency generation for laboratory research and OEM test equipment. Selection starts with the required working frequency, RF level, power supply and control configuration.
How should I interpret the phase-noise specification?
The reference value is −106 dBc/Hz at a 1 kHz offset from a 5 GHz carrier. Use that carrier and offset when comparing requirements. Request the relevant performance information if your test uses other frequencies or offsets.
What control information should I request?
Confirm the interface and control documentation for the ordered configuration. Include your required frequency-step resolution and how the module will be controlled by your test equipment, so the applicable hardware and documentation can be reviewed.
What should I include in an OEM inquiry?
Include UWB-LNOF, working frequencies, required RF level and frequency-step resolution, control requirements, power supply, connector and mechanical constraints, quantity, destination and timeline. Request confirmation of the supplied configuration and included items.
OEM Module Procurement
Request UWB-LNOF specifications or a quotation.
On Contact, select OEM Modules & Boards. Include UWB-LNOF and your RF, control, power and mechanical requirements, together with quantity, destination and timeline, so we can review the appropriate configuration.
